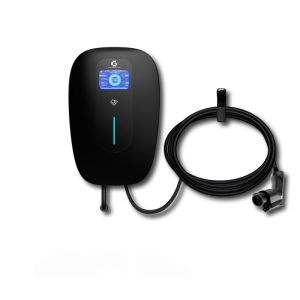

    IP65 22KW Home Charging Wall Box Three Phase Level 2 Solar PV Systems

    Ask Lasest Price
    Brand Name : Hongshunjin
    Model Number : CB32A-M3
    Certification : CE RoHS FCC
    Price : USD 258.12 UNIT
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 pieces per week
    Delivery Time : 1-4weeks
    • Product Details
    • Company Profile

    IP65 22KW Home Charging Wall Box Three Phase Level 2 Solar PV Systems

    Ev Charger Station Wallbox 11kw EV Charger Level 2 Fast Ev Charge Wallbox For Home


    Specification


    EV Charger Model
    CB32A-M3 (Type 2 wall mount 22KW ev charger)
    Version
    Home Charger (please contact if need the commerical ev charger)
    Electric Features
    Input
    340-460VAC, 50/60Hz
    Max Output Power
    22kW (three phase)
    Max Output Current
    32A
    Standard Cable length
    5m / 16.4ft (6m, 7m, 8m or customized length available )
    Operation Environment
    Storage Temperature
    -25℃ ~ +85℃
    Operation Temperature
    -20℃ ~ +65℃
    Relative humidity
    0-95% non-condensing
    Maximum altitude
    <2000m
    Waterproof Class
    IP65
    Cooling Method
    Natural Air Cooling
    Mounting way
    Wall-mounting bracket/Ground-mounting pole (optional)
    Function & Accessories
    RFID
    Yes(with NFC)
    LCD
    4.3-inch color display(3.0-inch display area )
    RCD
    Type A / Type A+6mA
    LED Indicator light
    Yes
    Intelligent Power Ajustment
    Yes
    Ethernet / WIFI / 4G
    Optional
    Certification
    CE RoHS
    Machanical Drawing
    Measures (LxWxH)
    340x240x120mm (excluding the metal stand )
    N.W./G.W.
    12KG / 13KG
    Master Carton Packing
    540x340x180mm (LxWxH), 1pc each carton


    Hongshunjin Electric is a specialist in EV charging station installations around China in multiple different scenarios.



    Our products possess the top-graded materials to withstand extreme conditions, namely being temperature-resistant, water-proof, and dust-proof, which comply with the IP55 and IP65 certification.

    We can install wall or floor-mounted EV Chargers, which are applied in both indoor and outdoor settings, such as garages at home or villa, carports, on-street parking and driveways.

    Those charging stations can interconnect with payment systems and back-office support through the OCPP platform for residential management and commercial use.

    Hongshunjin Electric incorporates solar PV systems or energy storage systems into our products. Meanwhile, all EV chargers are qualified with level II charging speed. Therefore, people can efficiently charge their electric vehicles by using solar energy.


    IP65 22KW Home Charging Wall Box Three Phase Level 2 Solar PV SystemsIP65 22KW Home Charging Wall Box Three Phase Level 2 Solar PV SystemsIP65 22KW Home Charging Wall Box Three Phase Level 2 Solar PV Systems


    FAQ


    Q1. What is your terms of packing?
    A: Generally, we pack our goods in industrial way, 5pcs per brown master carton. We also supply commercial pack, product in bag
    first then in pizza box then in master carton.

    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
    before you pay the balance.

    Q3. What is your terms of delivery?
    A: FOB, CFR, CIF, DAP, DDP

    Q4. How about your delivery time?
    A: Generally, it will take 7 to 15 days after receiving your advance payment. The specific delivery time depends on the items and
    the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery
